Axium IRFX3 Infra-Red Receivers


The Axium IRFX3 Infra-Red Receiver is Plasma, LCD and LED & Sun Light tolerant. It utilises leading edge technology to filter the receiver IR data packets. A microprocessor decides if the received packets are valid, re-transmitting & modulating in real time, with priority to reconstruct My Sky HD (Pace HD) IR. The Axium IRFX3 Infra-Red Receiver is suitable for surface mounting on Televisions, Plasma, LCD or LED displays as well as cabinets, appliances or speaker grills. The flat cable may be bent 90 degrees to provide rear or side cable exit. The receiver has excellent off-axis reception giving >50% range when 60 degrees off axis.

The Axium IRFX3 is available in three formats:


1. AX-IRFX3 Single. Each IRFX3 Single contains 1 x IRFX3 IR Receiver with three coloured shells, Black, White and Silver.





Download IRFX3 Single Cut Sheet

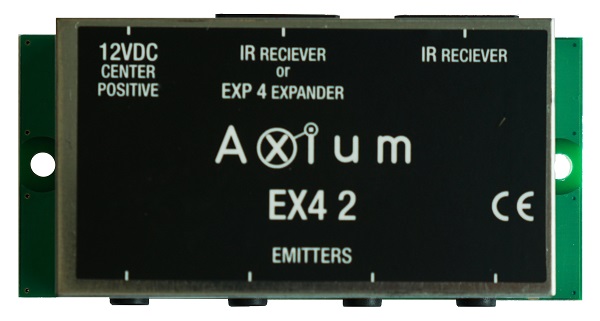

2. AX-IR KIT42. Each kit contains a single IRFX3 IR receiver, an EX42 connecting block,

4 x Slimline single emitters and 1 x Power Supply


Download IR KIT42-Kit Cut Sheet

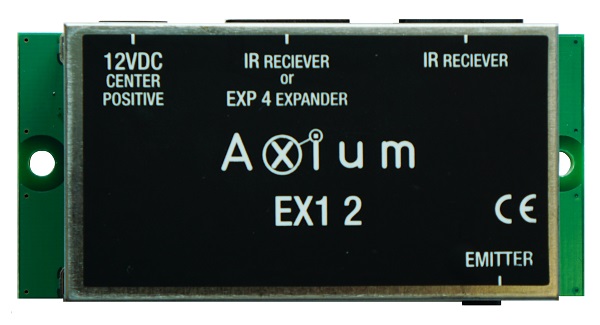

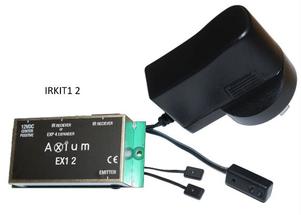

3. AX-IRKIT12. Each kit contains a single IRFX3 IR receiver, an EX12 connecting block,

1 x Slimline dual emitters and 1 x Power Supply


Download IR KIT12-Kit Cut Sheet






AX-EXP4 Expander Board. Use the EXP4 to increase the number of IRFX3 single receivers

in your project when used in conjunction with either the IRKIT4 2 or the IRKIT1 2.

Download EXP4 Cut Sheet
