Media Manager

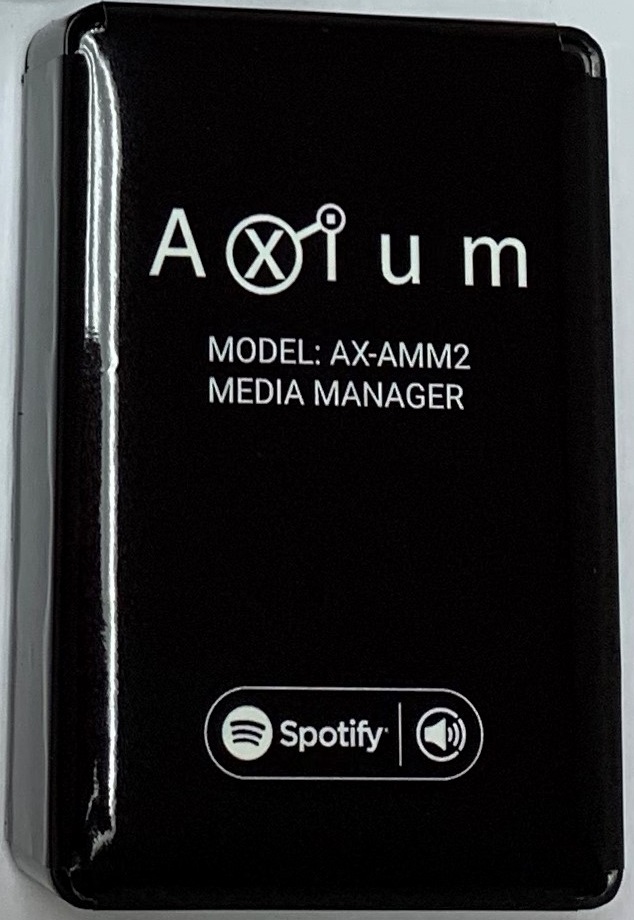

Axium AMM Media Manager

The AX-AMM features 4 digital coaxial connections and 8 available network streams (This provides a total of 12 physical sources available to any Axium amplifier on the network*). At the time of writing, the AX-AMM supports Apple Airplay, Spotify Connect, TIDAL, TuneIn, Network shares (UPnP, SMB), play from your device and Axium Favourites. The AX-AMM supports a large list of audio files. Included in this list is AAC (MPEG4), FLAC (lossless) and WAV files. Although the AX-AMM supports audio with sample rates of up to 192 kHz, it has a maximum output sample rate of 96 kHz. The AX-AMM performs sample rate conversion when required to support as many formats as possible.

Specifications and Features

  • Apple Airplay for each media player stream**
  • Spotify Connect for each media player stream**
  • TIDAL for  high fidelity music streaming**
  • TuneIn Internet streaming**
  • Local mobile device music playback (iOS and Android)
  • Network shares (NAS or PC)
  • Cast to device using UPnP/DLNA
  • 12 Audio Streams:
    • 1 - 4 Digital Coax (PCM)
    • 5 - 12 Network stream over LAN (RJ-45)
  • Support for up to 192 kHz 24 bit stereo audio
  • Send IR to control 3rd party devices
  • Auto integration into AX-Mini 4 and AX-1250 media players
  • One 12VDC power supply
  • Static or DHCP network connections
  • Dimensions: 110 L x 89 W x 30 D mm

Audio formats supported as of December 2016
MP3 Standard and variable bit and sample rates
WAV 8 and 16bit PCM up to 48kHz. No metadata. (96kHz)
M4A/MP4 Up to 48kHz and 576kBits/s. (96kHz)
AAC 48, 96K
OGG/OGA 2Ch, 500kBits
FLAC Up to 24 bit 192 kHz
HD FLAC 24 / 96 24, 96K
HD WAV 24, 96K
ALAC 24, 96K
AIFF 24, 96K

*AX-Mini 4 only has access to the network streams, although later models (v2/v3) do have up to 2 digital inputs available which can be used
*AX-1250 has access to both the 8 network streams and the 4 digital coax connections
*AX-800/AX-400 only have access to the digital coax connections
**An internet connection is required for Internet streaming services. ISP charges may apply. Future services may be added
Specifications and features subject to change without notice

Download AX-AMM Cut Sheet
